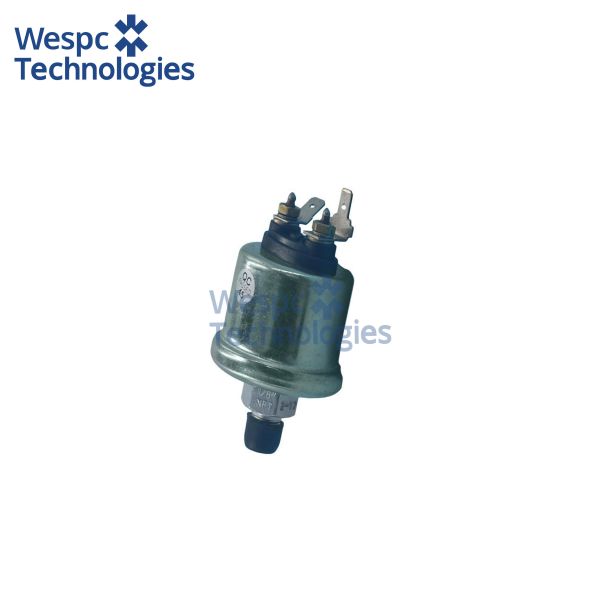

WESPC Oil Pressure Sensor CH12894 For Perkins 2306 2506 Engine Spare Parts
| Brand Name | WESPC |
| Place of Origin | China |
| Part Number | CH12894 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
The Oil Pressure Sensor CH12894 is designed for the Perkins 2306, 2506 and 2806 series turbo-charged diesel engines (ranging from 12.5 L to 18.1 L). These engines are widely installed in agricultural tractors (Massey Ferguson 8200, 6400, 5400 ranges), combine harvesters (MF Delta 9330/9370), high-output generator sets, heavy-duty telehandlers, and a broad spectrum of construction/industrial equipment such as skid-steer loaders and mobile lighting towers.
Technical specifications:
Thread size: 1/8" NPT male for fast, sealed installation into the engine block. Operating pressure range 0 – 10 bar (0 – 145 psi) with a 0.5 bar hysteresis to prevent nuisance alarms. Electrical interface: single-pin Packard Weather-Pack 12047911, 28–16 AWG, 42 V maximum, IP67 sealed against dust and moisture.
Material & performance features:
Sensing element is a laser-trimmed ceramic capacitive diaphragm giving ±2 % full-scale accuracy from –40 °C to +150 °C fluid temperature. Internal circuitry is protected by a two-stage over-voltage clamp and EMI filter compliant with SAE J1113-42.
Interchange part numbers:
CH12894, 10000-59828, AT168629, RE15583, 4181A022, 3638721M91, 747602M91, 1158145, WG1104543
